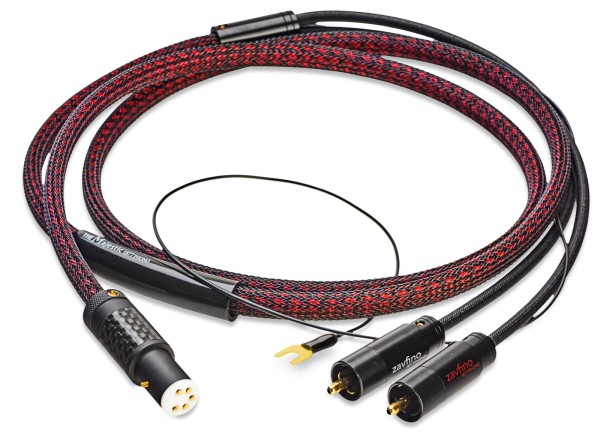

The Majestic MKII PC-OCC CONSTRUCTION Tonearm cable




The Majestic is a low capacitance cable specially engineered for high-end analogue reproduction. Construction consists of 4 independent evenly matched cores of Japanese OCC Single Crystal Copper. Each color coded core is extruded in FEP/ Tef and spiral twisted followed by an aluminum mylar wrap combined with a silver-plated multi-strand tight pitch shield for full coverage against stray signal interference. Covering the shield are two layers of RoHS certified PVC followed by two polyethylene terephthalate(PET) monofilament sleeves. RCA’s are our newest design OCC pin ZRP-4, high conductivity connectors, which are a low mass design insulated with PTFE/Tef insulation.

Finally, The Majestic utilizes our 5-pin high purity; PTFE/ Tef insulated DIN, which internally uses our anti-stress pin construction ensuring against conductor fatigue while providing optimum performance. The Majestic will provide your system with musically significant improvements capturing the performance with greater textural detail, tonal clarity and balance. Effortless, honest and well-defined The Majestic’s reproduction of the original composition be it Classical, Jazz or Modern is true to what the artist intended.

Specification

Low capacitance design for analogue applications

Insulations: FEP/Tef  Dielectric, PTFE Dielectric, ­fiberglass braided silicone coated breakouts, R-Flex 105C Degree PVC Jacket

Shield: Aluminum mylar double wrap, spiral Silver OFC tight pitch

Shield: 30cm SPOFC ground wire with 24k gold plated ground clip

Connector Female (DIN): 1877 TAD-2 straight or TAD-3R right angle DIN, 5-pin 24k gold plated high purity copper insulated in PTFE/Tef housing

Connector Male (RCA): 1877 ZRP-5 with OCC copper pin assembly direct 24k gold, insulated in PTFE/Tef, with a full housing design, Low profile construction

Sleeve 1: Polyethylene terephthalate(PET) monofilament sleeve with anti-static ­fiber red

Sleeve 2: Polyethylene terephthalate(PET) monofilament sleeve PET/PET black​

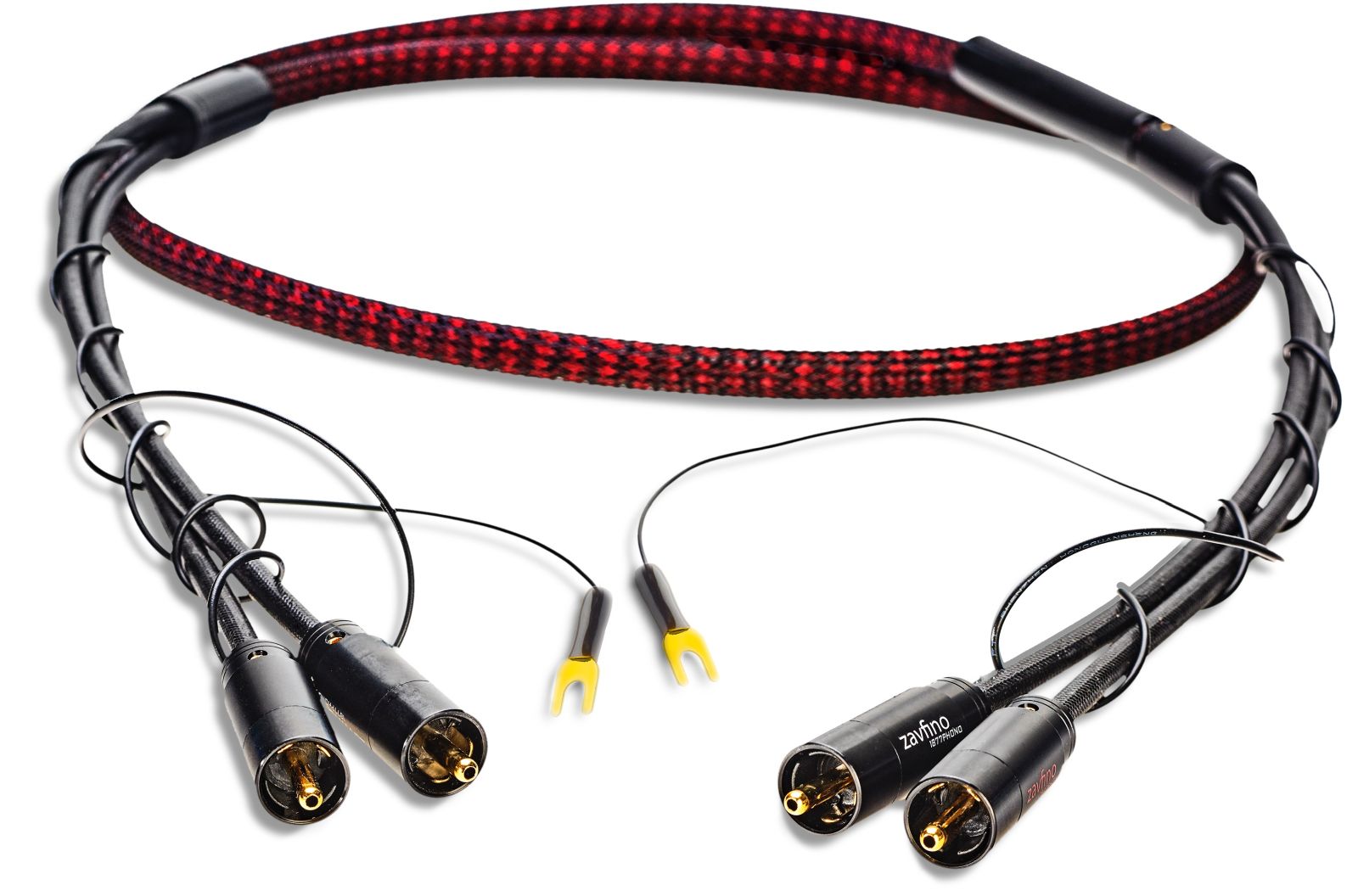

Note: Majestic, Highlands, & Gold Rush tonearm cable  RCA-RCA version use a different RCA due to shielding considerations.
