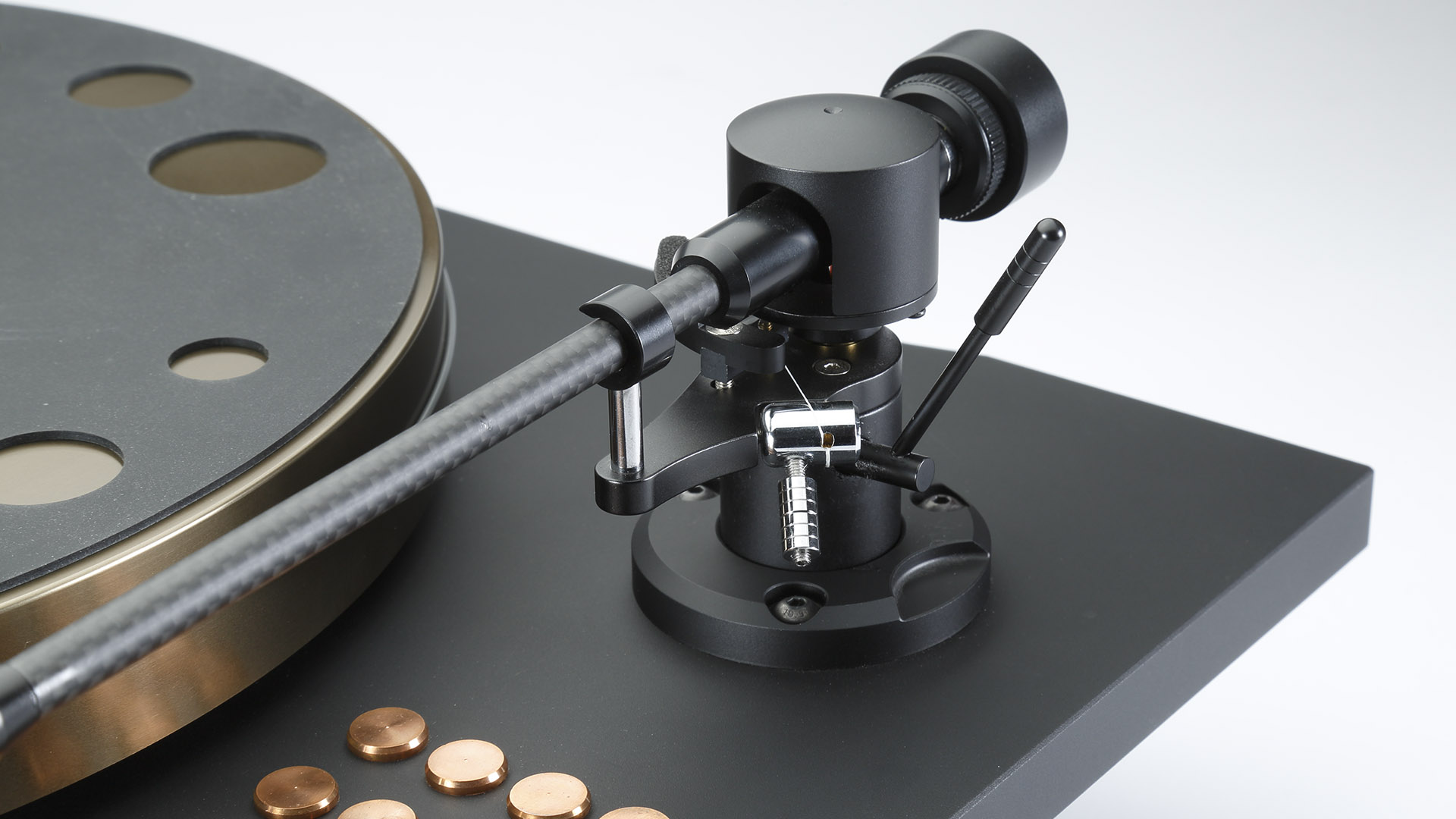

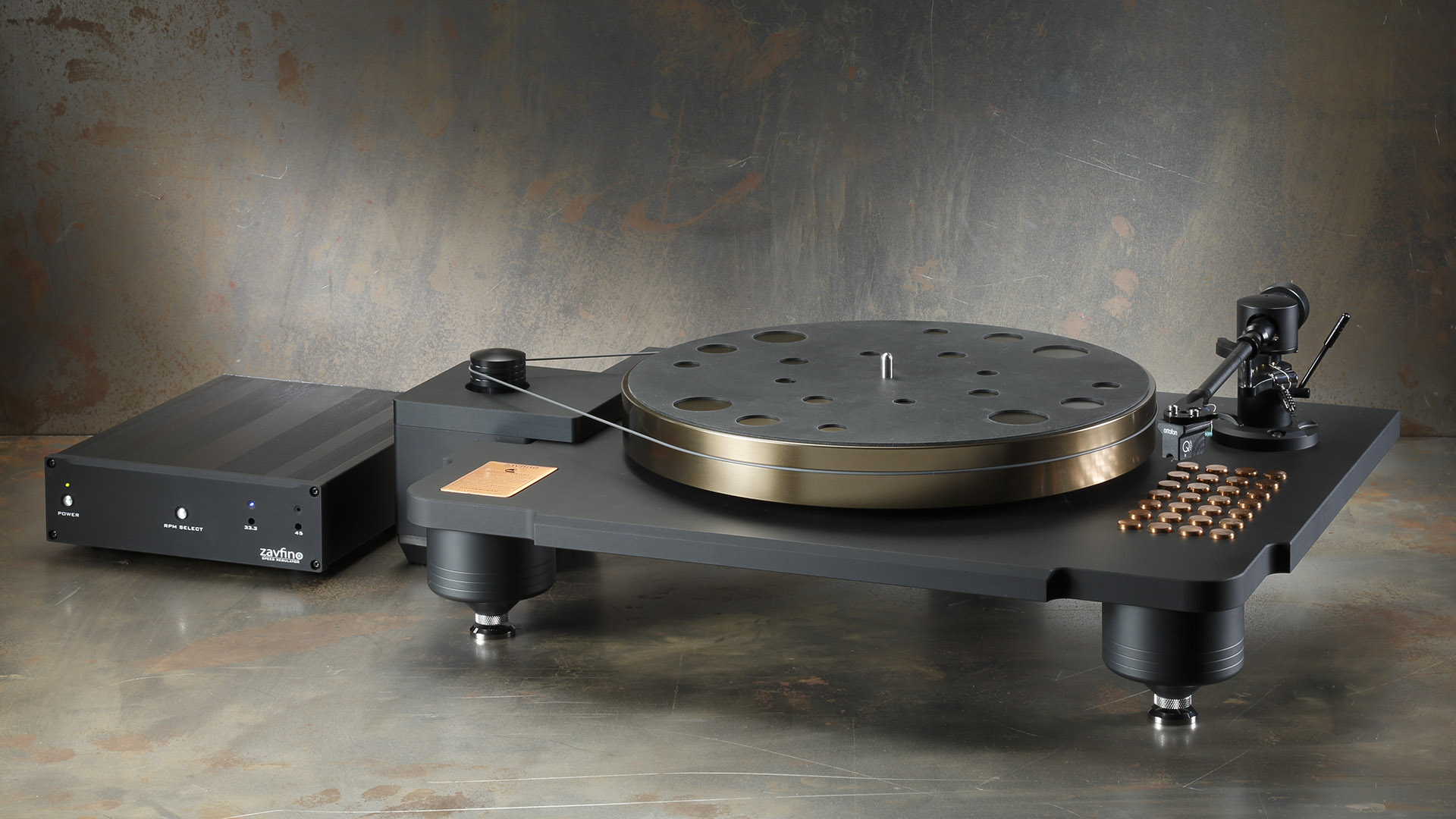

Copperhead comes standard with a fully independent motor supply in a 1.8kg block aluminum housing regulated by an AC regenerating circuit, which allows for a perfect AC current that can be slightly adjusted a for a perfect 33.3rpm and 45rpm operation. Also standard is our Aeshna Carbon or Aluminum arm with a second optional arm socket for other manufacturer's arms up to 10.5 inches.
The central bearing is two-piece solid stainless steel with a copper bushing; ceramic ball bearing and Teflon thrust plate. We further upgrade the bearing cap with the inclusion of silicone dampening rings between the bearing and aluminum platter. The table bearing sits in a 20mm acrylic anti-vibration disc isolating the bearing from the plinth further decreasing and standing wave vibration. The disc is locked into place with the a combination of use combination of PA-66 nylon and stainless steal screws effectively decoupling the bearing and platter from the plinth.
The plinth is solid aluminum in satin black supported by three large POM feet to absorb vibration. In total the plinth uses a mix of Aluminum, POM, Acrylic, and pure copper slugs to effectively deadening it against vibration.
Platter is machined Aluminum billet that is Diamond Cut on the top side and contoured machined on the underside to dissipate vibration.
Motor housing is machined out of a solid block of aluminum and completely independent form the table. It houses our 16V low torque motor which uses a universal power supply.
Colour: Satin Black with antique bronze anodized aluminum platter, or optional satin black or satin silver platter
General Specification
Plinth
Material: CNC machined 6061 solid aluminum
Thickness: 16.20mm
Dimensions: L480/W380/H60 (H-Rack to bottom of plinth)
Finish: Fine sandblast / anodized satin black
Resonance control 1: Acrylic disc sandwich (5.0mm)

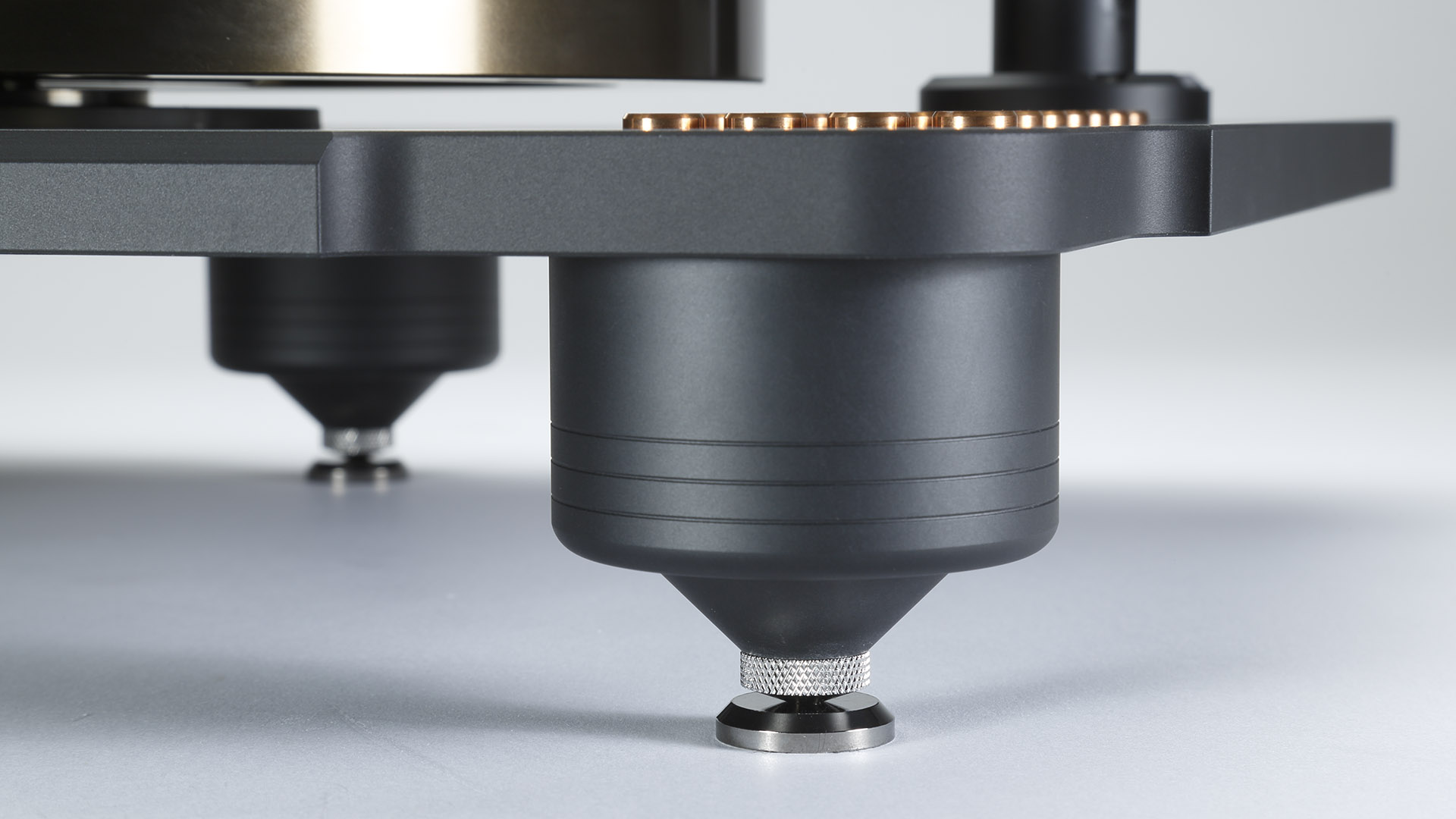

Foot: Solid 6061 aluminum with copper plated adjustable spike
Weight without platter: 14.8kgs
Platter
6061 machined aluminum with contoured underside
Thickness: 35mm machined/contoured
Diameter: 298mm
Bearing cap: Stainless steel, JIS standard-bronze insert
Teflon thrust plate
Bearing shaft: Stainless steel with oil reservoir cup
Weight: 5.5kgs
Motor & Housing
Material: CNC machined 6061 solid aluminum block
Dimensions: L100/W90/H100 (mm)
Finish: Fine sandblast / anodized satin black
16V/ low torque 50/60Hz with delrin pulley
Foot: Industrial grade rubber (non marking)
AC Power cable: Shielded/detachable
Belt: Industrial grade silicone
Weight: 2.0kgs
Speed Regulator
33.3rpm/45rpm
Fine pitch control adjustment
100-240V, 50/60Hz Universal power supply
Material: Aluminum 6061
Finish: Fine sandblast- anodized satin black
Dimensions: L180/D200/H65 (mm)
Foot: Rubber non-marking
Weight: 2.0kgs
Total weight
24.3 kgs
Colours:
Anodized Black/Bronze, Power Coat Charcoal/Black.
