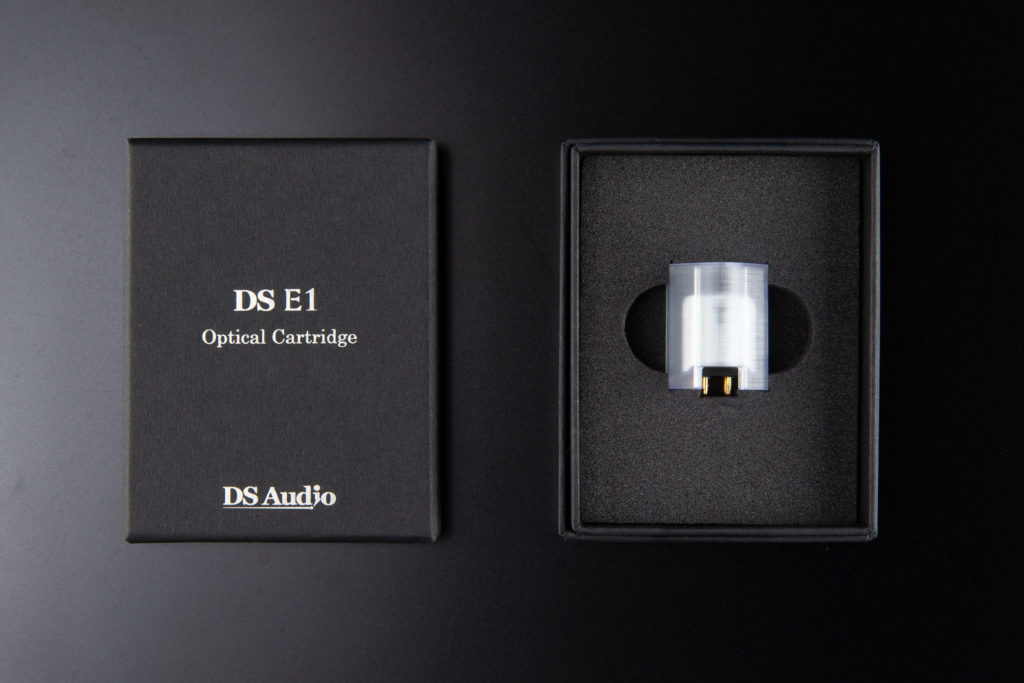

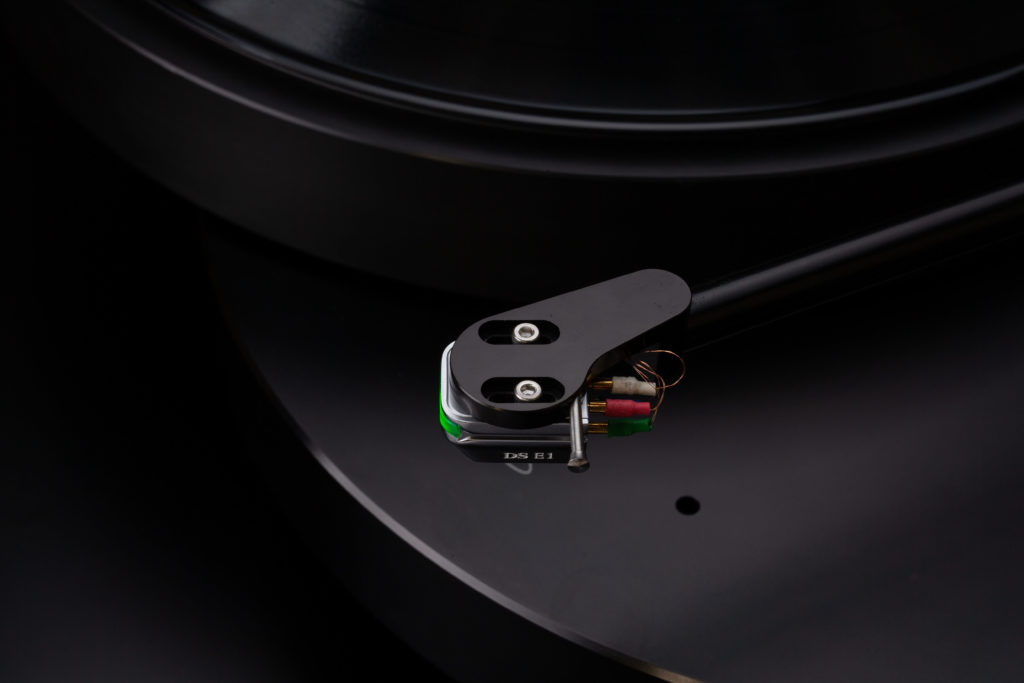

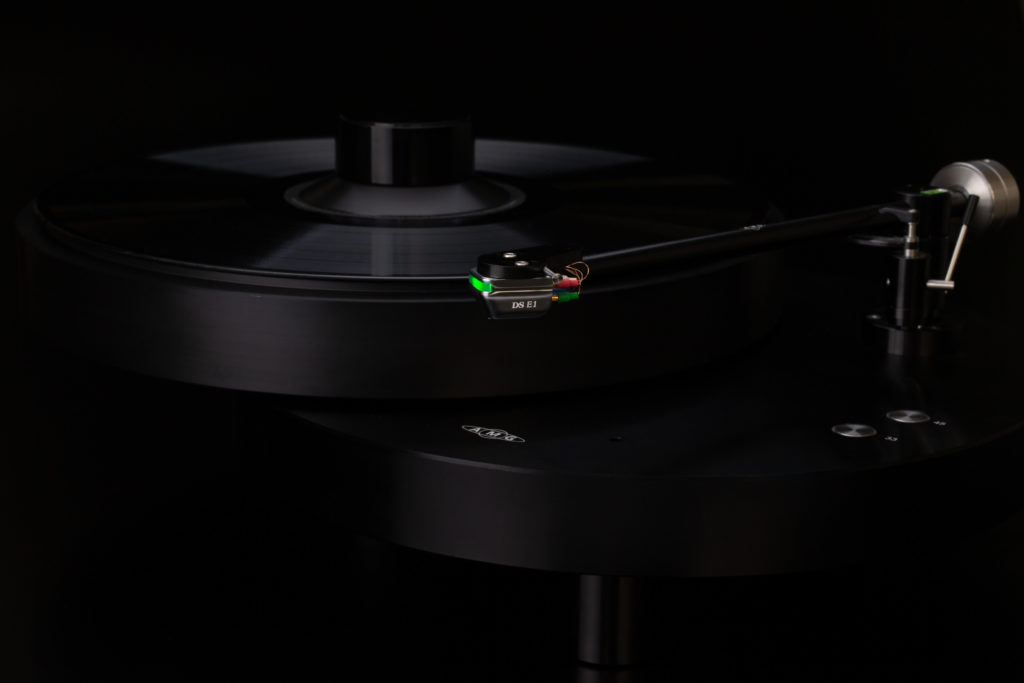

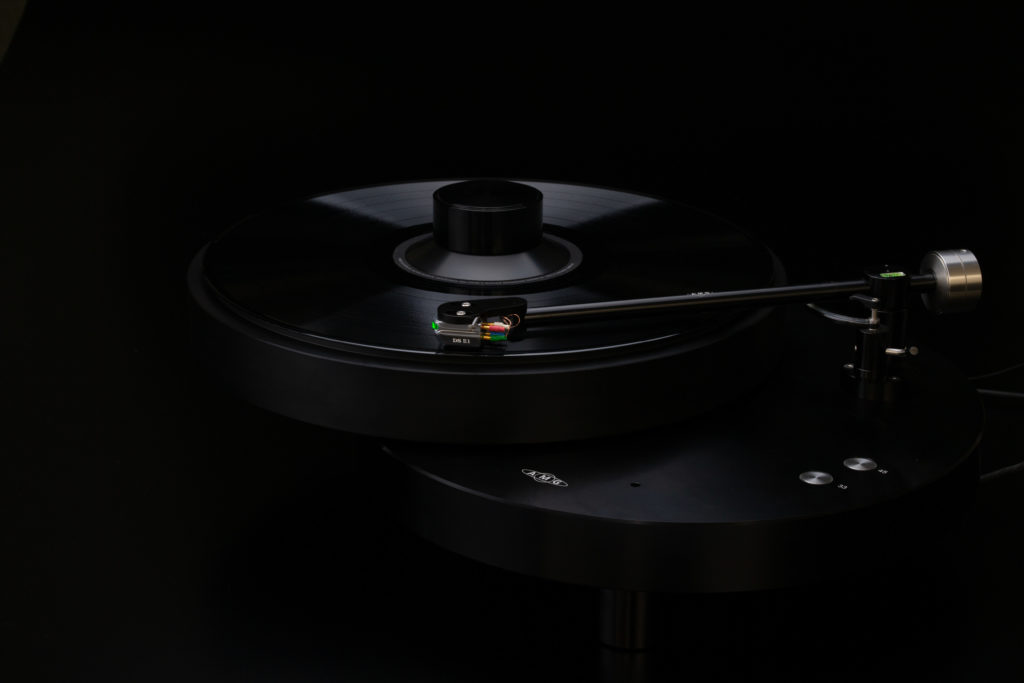

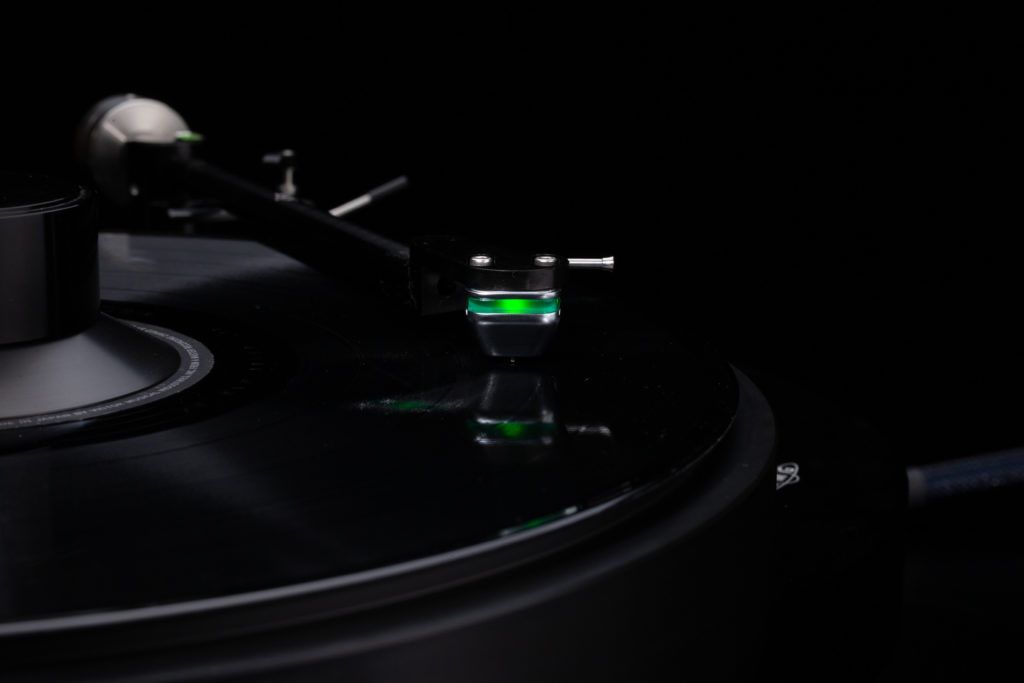

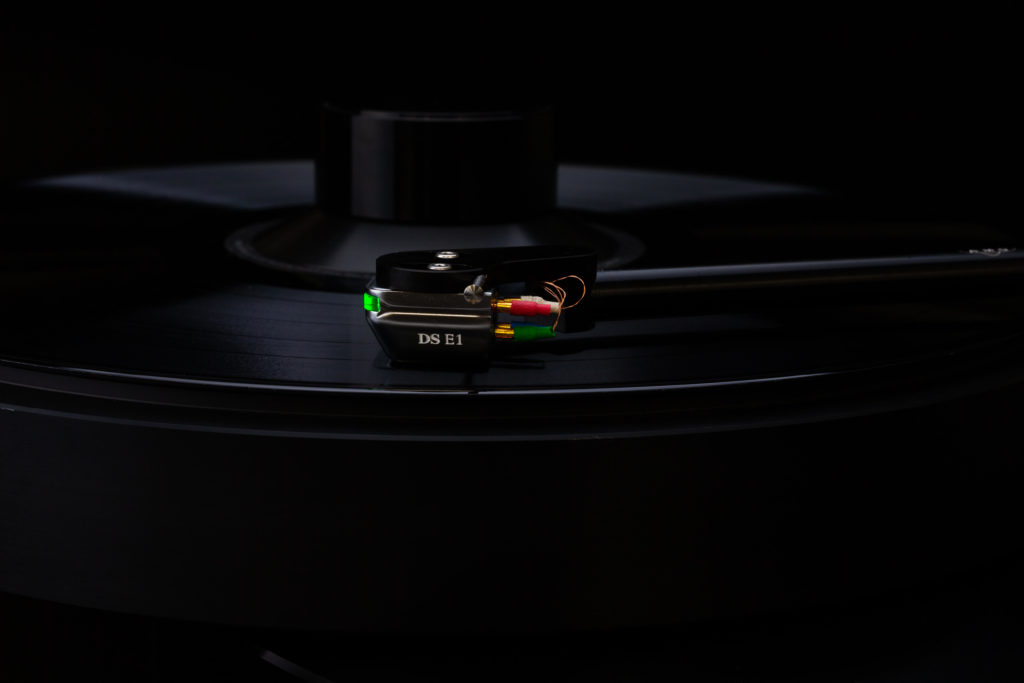

Cartridge

Using vibration system of the same design as DS Master1 and DS-W2 and DS002
DS-El has a wire suspension mechanism which is the same design as DS Master 1 and DS-W2 and DS002 By implementing it, you realize high channel separation and stable music playback.
Moreover, by arranging the position of the slit at the position close to the needle point, it is possible to retrieve information with higher freshness.

Aluminum Cantilever with Elliptical needle

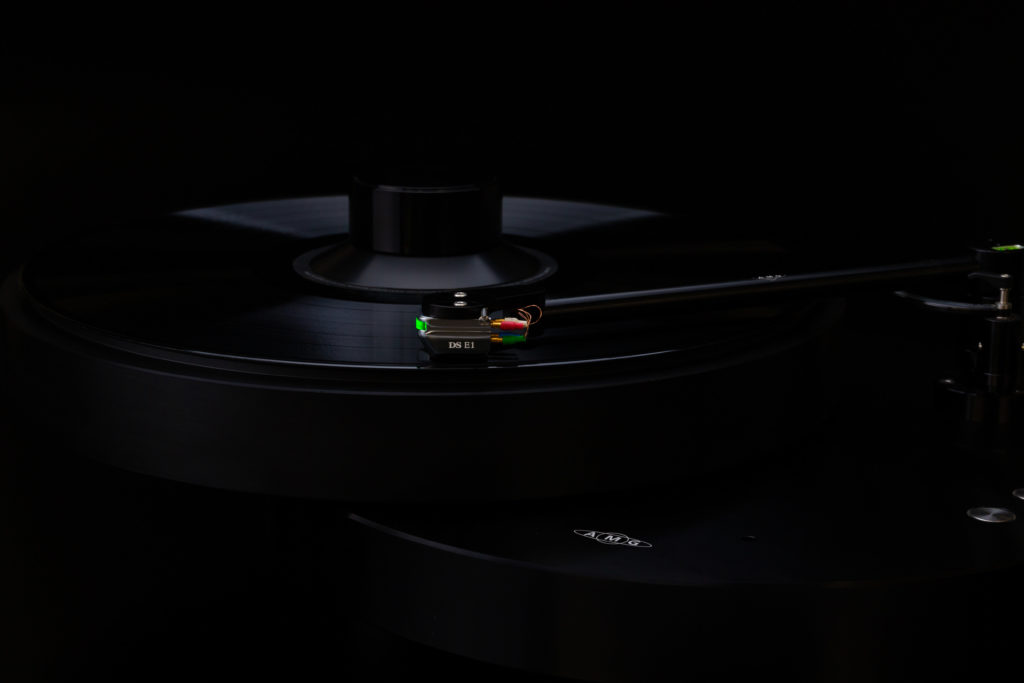

Like the more expensive DS Audio cartridges, the DS-E1 cartridge body is machined from aluminum and echoes their distinctive design for best optical performance. The DS 002 features an aluminum cantilever and Elliptical needle to accurately reproduce the music recorded on the vinyl record album.

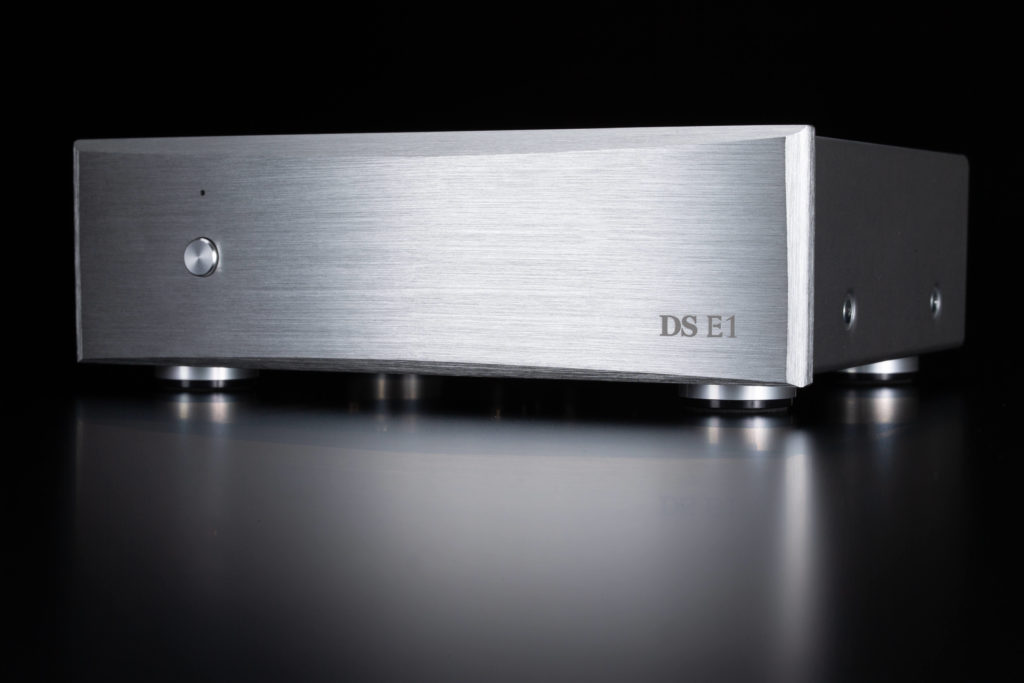

Equalizer

Small size, big performance

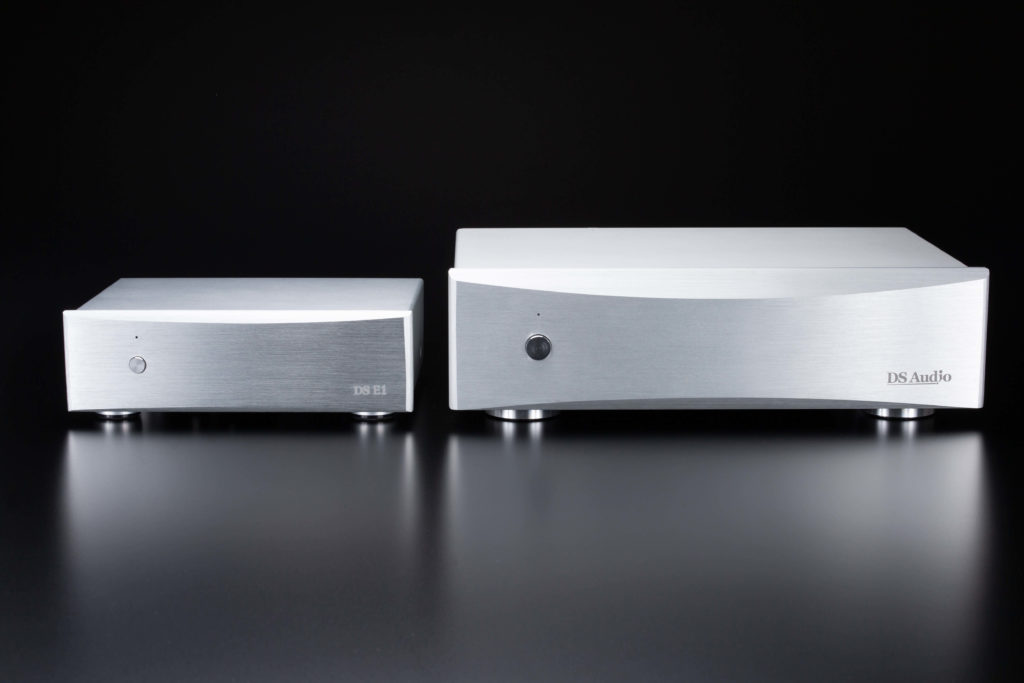

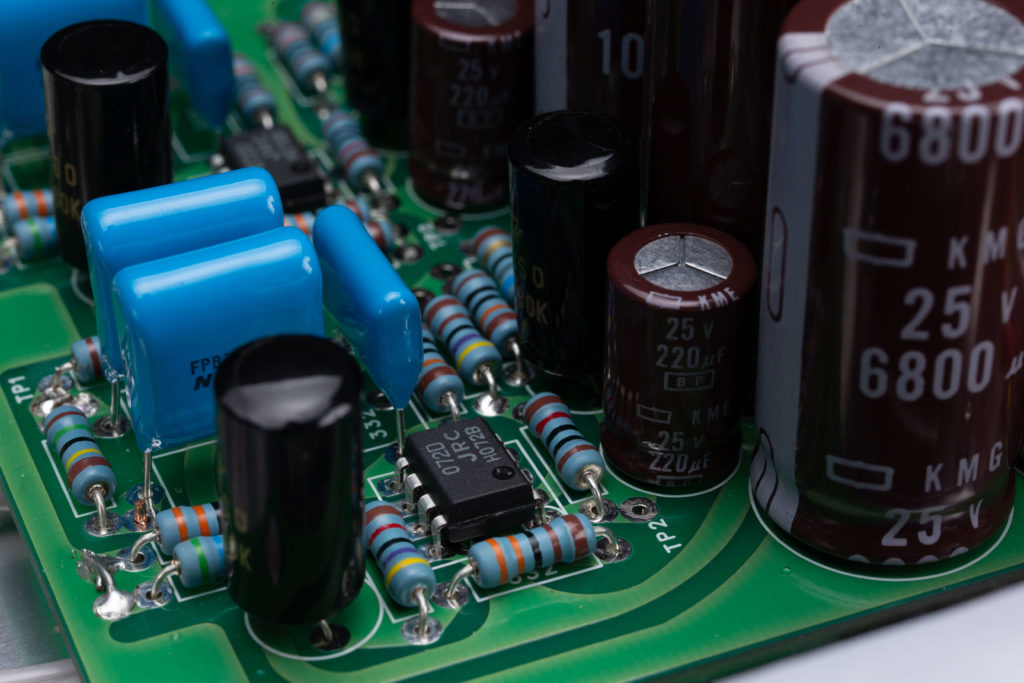

he DS-El equalizer employs an operational amplifier at the heart of its amplification circuit, greatly reducing the number of components required. This also allows the DS-E1 to posses an extremely compact form factor, around 1/3 the size of the DS-002 equalizer, whilst still offering the world leading performance you have come to expect from DS Audio.

Proudly manufactured in Japan
The DS-E1 features precision machined aluminum casework, an element it shares in common with its illustrious stable-mates. Each DS-E1 is manufactured by hand in DS Audio's facility in Sagamihara City.

Technical specifications

DS-E1 Optical Cartridge

Signal output: Photo-electric Conversion
Channel separation: 24db more (1kHz)
Weight: 8.1g
Output signal level: 50mV more
Canti-lever: Alminum
Body material: Alminum
Needle pressure: 1.6g~1.8g(1.7g is recommended)
Stylus: Elliptical Needle

DS-E1 Equalizer for Optical Cartridge

Output voltage: 500mV(1kHz)
Output impedance: 120Ω
Pre amp input impedance: More than 10kΩ
Input terminal: RCA terminal
Output terminal: RCA terminal (Switch two outputs with switch)
Size: W20cm×H7cm×D16cm
Weight: 1.4kg
