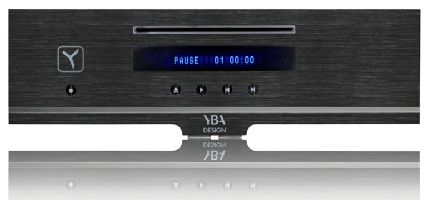

The Design CD player uses an attractive slot drive loading system which is a delight to use. The electric blue display highlights the great look of the range. This player is extremely versatile - features include digital input and output, a USB input for direct connection to a PC whereby you benefit from the player’s internal PCM1796 Texas Instruments DAC, plus IR in and out for custom use.

Drive compatibility: CD CD-R CD-RW
DAC: Texas Instruments PCM1796 24 bit/192 kHz
Digital input word length: 16, 18, 20 or 24 bits
Digital input frequency: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 192 kHz

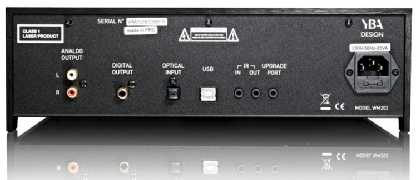

Inputs: Optical / USB (to facilitate its use as high end DAC with PC/Mac)
Audio outputs: Gold plated RCA S/PDIF (Coaxial)
Output level RMS: 2V
SNR: >107 dB
Frequency response: 20 Hz - 20 kHz
THD&N (20 Hz-20 kHz): <0.001%
Power supply: Linear power supply with high performance R-core transformer
Custom installation: IR in IR out
Remote control: Yes
Finish: Black
Dimensions w x d x h: 320 mm x 280 mm x 110 mm
Weight: 5 kg
