Passion IA350




Passion integrated amplifiers have been award winners over the years and we feel sure that this latest model is guaranteed the same success.

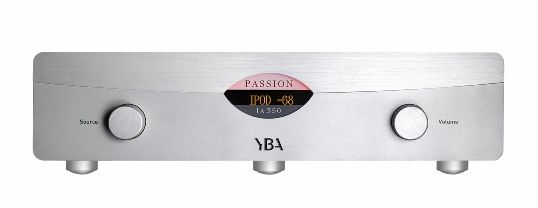

Staying with the uncluttered style synonymous with YBA, the front panel has simply an input and volume selector together with the phase and mute buttons found on the Signature and Passion preamplifiers. The turn on switch is cleverly concealed beneath the front left hand side of the amplifier. The source selector toggles between many different inputs - both analog and digital. The digital inputs include an S/PDIF (75 Ohm) COAXIAL digital input, a USB (24/192KHz) plus AES/EBU, I 2S, and iPod, all of which receive digital signals from separate digital components. The analog inputs include 2 RCA and 1 Balanced.
All digital inputs automatically adjust to any of the standard digital-audio data-rates from 16/44.1Khz to 24/192Khz.
The Passion IA350 also has a pre-out bypass feature, if, for example, you wish to connect an active subwoofer or active loudspeakers.

 Power output: Stereo 115W/8Ω 160W/4Ω

Line Inputs: 2 RCA
                      1 Balanced
                      5 Digital (I2S / AES/ COAXIAL / USB / iPod )

Input signal sampling rate: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz/24Bit

Line Output: 1 Pair RCA

Pre-out bypass: Yes

SNR: >95dB

THD&N (20 Hz - 20 kHz): <0.03%

DAC: High performance 24bit/192Khz CS4398

Frequency response: 20 Hz - 20 kHz (-0.5 dB)

Display: OLED

Display brightness: Adjustable from remote

Power supply: Linear power supply with high performance
Ul-core transformer 320VA

Remote control: Full function - full metal chassis

Finish: Natural aluminium

Dimensions w x d x h: 430 x 410 x 108 mm

Weight: 15.4 Kg
