POWER OUTPUT: 50 watts per channel continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1.5% at 50 watts, .05% at 1 watt.


FREQUENCY RESPONSE: (-3dB points at 1 watt)
1.0Hz to 80 kHz.


INPUT SENSITIVITY: 0.47V RMS Single-ended for rated output. (32.5dB gain into 8 ohms.)


INPUT IMPEDANCE: 50K ohms Single-ended.

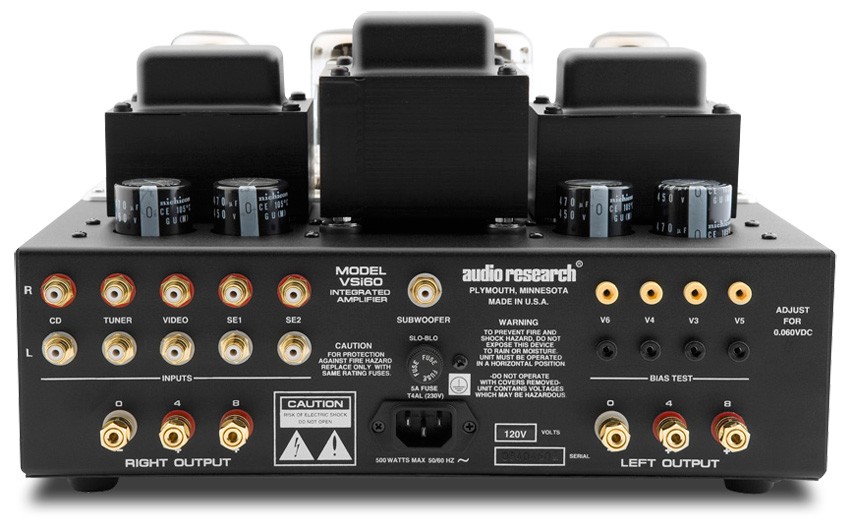

INPUTS (5): CD, Tuner, Video, SE1, SE2 (Single Ended RCA connectors).

MAXIMUM INPUT: 3.5V RMS (any input).


OUTPUT POLARITY: Non-Inverting (any input).


PUSH BUTTONS: Volume up, volume down. (103 steps, 20 LED indicators), Input, Mono, Mute, Power. All functions on IR remote control.


OUTPUT TAPS: 8 ohms, 4 ohms.


MONO SUBWOOFER OUTPUT: 1V RMS at rated power.


OVERALL NEGATIVE FEEDBACK: 7dB.


HUM AND NOISE: Less thatn 0.1mV RMS — 106dB beow rated output (IHF weighted, Vol down).


POWER SUPPLIES: Electronically regulated Low and High voltage supplies for input stages. Automatic 30 sec. warm-up/brown-out mute.

POWER SUPPLY ENERGY STORAGE:
Approximately 166 joules.


POWER REQUIREMENTS: 100-125VAC 60 Hz (200-250VAC 50Hz) 300 watts at rated output, 500 watts maximum, 200 watts at "idle".

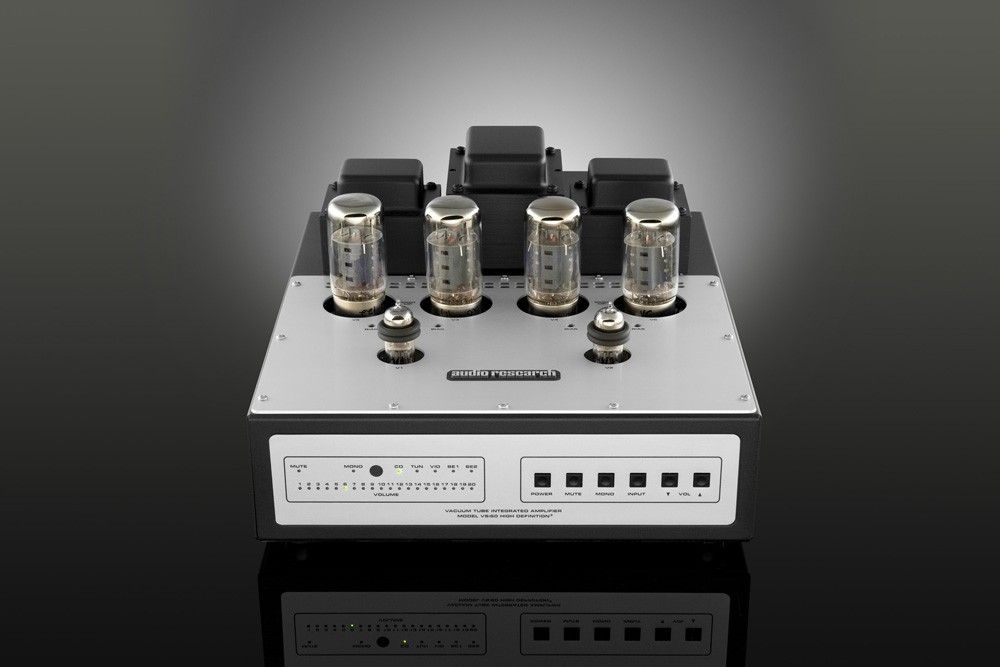

TUBES REQUIRED:
2 — Matched pair KT120. Power Output: 2-6H30 driver.


DIMENSIONS: 14" (35.6 cm) W x 8" (20.3 cm) H x 16"(40.6 cm) D. Rear connectors extend .88" beyond chassis.



WEIGHT: 34.8 lbs. (15.8 kg) Net; 38.3 lbs. (17.4 kg) Shipping.
